Transformer No-Load Loss, Load Loss, and Impedance Voltage Calculation Explained

Transformer No-Load Loss, Load Loss, and Impedance Voltage Calculation Explained

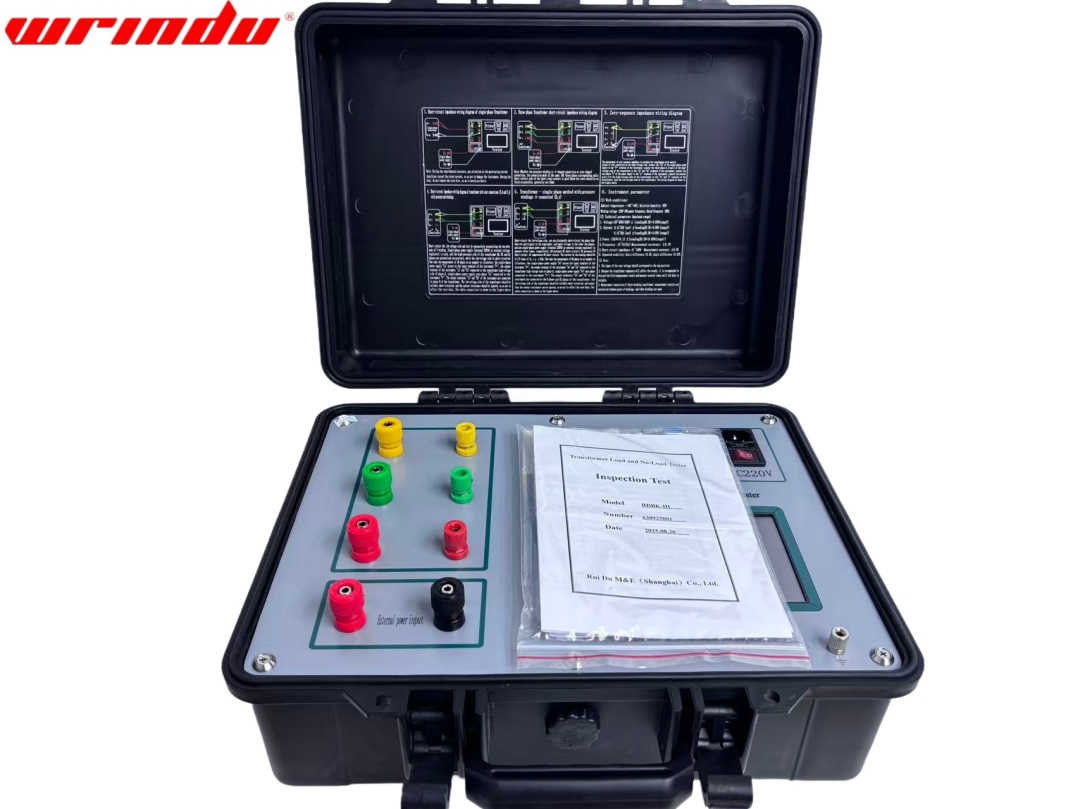

The image is Wrindu Transformer Load and No-load loss Tester.
Understanding transformer losses is essential for power utilities, industrial users, and electrical engineers aiming to improve energy efficiency and reduce operating costs. Transformer losses are mainly divided into no-load loss (iron loss) and load loss (copper loss).

Overview of Transformer Losses

Transformer losses consist of two primary components:

  • No-load loss (Po): Also known as iron loss, caused by hysteresis and eddy currents in the transformer core. It remains nearly constant as long as voltage and frequency are stable.

  • Load loss (Pk or Pc): Mainly copper loss generated by winding resistance when load current flows. It varies with load and is proportional to the square of the current.

The total transformer loss is expressed as:

ΔP = Po + Pc

Transformer Loss Calculation Formula

Transformer losses can be evaluated using the following standard formulas:

Active power loss:

ΔP = Po + KT · β² · Pk

Reactive power loss:

ΔQ = Qo + KT · β² · Qk

Comprehensive power loss:

ΔPz = ΔP + KQ · ΔQ

Where:

  • Po – No-load loss (kW)

  • Pk – Rated load loss (kW)

  • Qo – No-load reactive loss (kvar), Qo ≈ Io% · Sn

  • Qk – Rated load reactive power (kvar), Qk ≈ Uk% · Sn

  • Sn – Rated transformer capacity (kVA)

  • Uk% – Percentage short-circuit voltage

  • Io% – No-load current percentage

  • β – Load factor

  • KT – Load fluctuation loss coefficient

  • KQ – Reactive economic equivalent (kW/kvar)

Recommended Parameter Selection

For practical engineering calculations, the following values are commonly used:

  • KT = 1.05

  • KQ = 0.1 kW/kvar (for 6kV–10kV urban and industrial power grids at minimum load)

  • Load factor (β):

    • Agricultural transformers: 20%

    • Industrial transformers (three-shift operation): 75%

  • Annual operating hours: 8760 h

  • Maximum load loss hours: 5500 h

Transformer-specific parameters such as Po, Pk, Io%, and Uk% should be obtained from manufacturer nameplates or factory test reports.

Calculation of Iron Loss and Copper Loss Energy

Iron loss energy consumption:

Iron loss (kWh) = Po (kW) × Operating time (h)

  • Continuous power supply users: 720 h per month

  • Intermittent supply: calculated based on actual energized hours

  • Users with accumulation clocks: based on recorded power supply time

Copper loss energy consumption:

  • When average load rate ≤ 40%: Copper loss = Monthly energy consumption × 2%

  • When average load rate > 40%: Copper loss = Monthly energy consumption × 3%

Load rate formula:

Load rate = Energy consumption / (Sn × T × cosφ)

Where T = 720 h and cosφ ≈ 0.8.

Transformer Efficiency

Transformer efficiency is defined as:

η = Pz / (Pz + ΔP) × 100%

Where Pz is the transformer output power.

Typical transformer loss levels:

  • Copper loss: ~0.5%

  • Iron loss: ~5–7%

  • Dry-type transformers generally exhibit lower total losses than oil-immersed transformers.

No-Load Loss Measurement and Standards

No-load loss is measured by applying rated sinusoidal voltage to the primary winding with the secondary open-circuited. Accurate measurement requires:

  • Near-perfect sinusoidal voltage waveform

  • Difference between average and RMS voltage readings ≤ 3%

  • High-accuracy CTs, PTs, and wattmeters suitable for low power factor measurement

With modern low-loss core materials such as grain-oriented silicon steel and amorphous alloys, no-load power factors are extremely low, placing higher demands on test equipment accuracy.

Professional Transformer Testing Solution

For precise measurement of transformer no-load and load losses, the RDBK-Ⅲ Transformer Load and No-Load Tester is a reliable and efficient solution.

The RDBK-Ⅲ integrates:

  • Advanced single-chip microcomputer technology

  • High-precision A/D synchronous AC sampling

  • Digital signal processing algorithms

This ensures accurate, stable, and repeatable test results, making it ideal for factory testing, site commissioning, and maintenance applications.

About Transformer Testing Solutions

Modern transformer testing plays a critical role in energy efficiency evaluation, condition assessment, and compliance with international standards. Selecting the right testing equipment helps utilities and industries reduce losses, improve system reliability, and achieve long-term cost savings.

For more information on transformer testing equipment or to request the latest quotation, please contact us directly.

For more HV Testing Equipment, visit official website: www.wrindu.com / www.hvtesters.com
